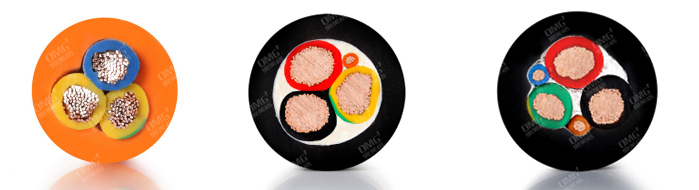

美洲UL認證充電電纜
Reference Standard：UL 2263
UL No.:E345899

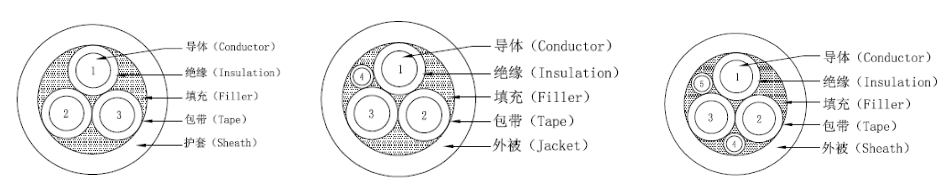

| 結構 | 電纜特性 |
| 1.導體 | 額定溫度：-40℃～105℃ |
| 材質: 裸銅 | 額定電壓：300V；600V or 1000V |
| 2.絕緣 | 燃燒測試： VW-1 Test method Comply with UL 2556 |
| 材質: TPE or PVC | 最小彎曲半徑： Bending Radius: ≥5*OD |
| 顏色：黑，白，綠/黃 | 耐壓： 1.5kVac/1min. No Breakdown Test method Comply with UL 2556 |
| 3.填充 | 低溫彎曲：-40℃/4h No cracks Test method Comply with UL 2556 |
| 材質: PP Cord | 熱沖擊：150℃/1h No cracks Test method Comply with UL 2556 |
| 4.包帶 | 耐油：IRM902, 60℃/168h Tensile and Elongation ≥70% Unaged value |
| 材質:無紡布 | 耐碾壓：S≤12AWG 4.45kN, 12AWG＜S≤2AWG, 11.1kN, 2AWG＜S 15.6kN |
| 5.護套 | 耐氣候：720hin a xenon arc weatherometer, No cracks |
| 材質: TPE or PVC | 環保要求：Compliant with RoHS 2.0 and REACH |
| 顏色: 黑色或橙色 |
型號 |
規格
|
導體絞合外徑
|
導體電阻
|
參考允載電流
|
完成外徑
|
包裝 |
600V or 1000V EVE(TPE) EVT(PVC) |
3×16AWG |
1.5/1.2 |
14.1 |
12A |
10.8±0.5 |
1000m/700# |
3×14AWG |
1.9/1.2 |
8.88 |
16A |
11.8±0.5 |
800m/700# |
|
3×12AWG |
2.4/1.2 |
5.58 |
23A |
14.3±0.5 |
500m/700# |
|
3×10AWG |
3.0/1.2 |
3.51 |
32A |
15.6±0.5 |
500m/700# |
|
2×8AWG+10AWG |
4.3/3.0 |
2.23/3.51 |
48A |
20.9±0.8 |
500m/950# |
|
2×6AWG+8AWG |
5.4/4.3 |
1.40/2.23 |
63A |
23.4±0.8 |
400m/950# |
|
2×4AWG+6AWG |
6.6/5.4 |
0.882/1.4 |
75A |
27.0±0.9 |
300m/950# |
|
2×2AWG+4AWG |
8.2/6.6 |
0.555/0.882 |
100A |
30.5±1.0 |
400m/1200# |
|
3×16AWG+1×18AWG |
1.5/1.2 |
14.1/22.4 |
12A |
11.4±0.5 |
800m/700# |
|
3×14AWG+1×18AWG |
1.9/1.2 |
8.88/22.4 |
16A |
13.5±0.5 |
500m/700# |
|
3×12AWG+1×18AWG |
2.4/1.2 |
5.58/22.4 |
23A |
14.5±0.5 |
500m/700# |
|
3×10AWG+1×18AWG |
3.0/1.2 |
3.51/22.4 |
32A |
15.8±0.6 |
500m/700# |
|
2×8AWG+10AWG+18AWG |
4.3/3.0 |
2.23/3.51/22.4 |
48A |
20.9±0.8 |
500m/950# |
|
2×6AWG+8AWG+18AWG |
5.4/4.3 |
1.40/2.23/22.4 |
63A |
23.4±0.8 |
400m/950# |
|
2×4AWG+6AWG+18AWG |
6.6/5.4 |
0.882/1.4/22.4 |
75A |
27.0±0.9 |
300m/950# |
|
2×2AWG+4AWG+18AWG |
8.2/6.6 |
0.555/0.882/22.4 |
100A |
30.5±1.0 |
400m/1200# |
|
3×16AWG+2×18AWG |
1.5/1.2 |
3.51/22.4 |
12A |
12.2±0.5 |
500m/700# |
|
3×14AWG+2×18AWG |
1.9/1.2 |
8.88/22.4 |
16A |
14.1±0.5 |
500m/700# |
|
3×12AWG+2×18AWG |
2.4/1.2 |
5.58/22.4 |
23A |
15.1±0.6 |
500m/700# |
|
3×10AWG+2×18AWG |
3.0/1.2 |
3.51/22.4 |
32A |
15.8±0.6 |
500m/700# |
|
2×8AWG+10AWG+2×18AWG |
4.3/3.0 |
2.23/3.51 |
48A |
20.9±0.8 |
500m/950# |
|
2×6AWG+8AWG+2×18AWG |
5.4/4.3 |
1.40/2.23 |
63A |
23.4±0.8 |
400m/950# |
|
2×4AWG+6AWG+2×18AWG |
6.6/5.4 |
0.882/1.4 |
75A |
27.0±0.9 |
300m/950# |
|
2×2AWG+4AWG+2×18AWG |
8.2/6.6 |
0.555/0.882 |
100A |
30.5±1.0 |
400m/1200# |
|
2×1/0AWG+2AWG |
10.5/8.2 |
0.349/0.555 |
200A |
38.0±1.0 |
250m/1200# |
|
2×3/0AWG+1/0AWG |
13.05/10.5 |
0.219/0.349 |
260A |
45.0±1.0 |
150m/1200# |
|
300V EVJE(TPE) EVJT(PVC) |
3×16AWG |
1.5/1.2 |
3.51/22.4 |
12A |
9.5±0.3 |
1200m/700# |
3×14AWG |
1.9/1.2 |
8.88/22.4 |
16A |
10.2±0.5 |
1000m/700# |
|
3×12AWG |
2.4/1.2 |
5.58/22.4 |
23A |
11.4±0.5 |
800m/700# |
|
3×16AWG+1×18AWG |
1.5/1.2 |
3.51/22.4 |
12A |
10.5±0.5 |
1000m/700# |
|
3×14AWG+1×18AWG |
1.9/1.2 |
8.88/22.4 |
16A |
11.1±0.5 |
80m/700# |
|
3×12AWG+1×18AWG |
2.4/1.2 |
5.58/22.4 |
23A |
12.2±0.5 |
500m/700# |
|
3×16AWG+2×18AWG |
1.5/1.2 |
3.51/22.4 |
12A |
11.3±0.5 |
800m/700# |
|
3×14AWG+2×18AWG |
1.9/1.2 |
8.88/22.4 |
16A |
12.0±0.5 |
800m/700# |
|
3×12AWG+2×18AWG |
2.4/1.2 |
5.58/22.4 |
23A |
13.1±0.5 |
500m/700# |
|
信號線根數可以為0~6根，或者更多，信號線導體規格可以為16AWG,18AWG,20AWG,22AWG。 |
||||||
以上產品規格、尺寸、結構可能因為技術進步而有所改變，同類規格可根據客戶使用需求進行設計製造。

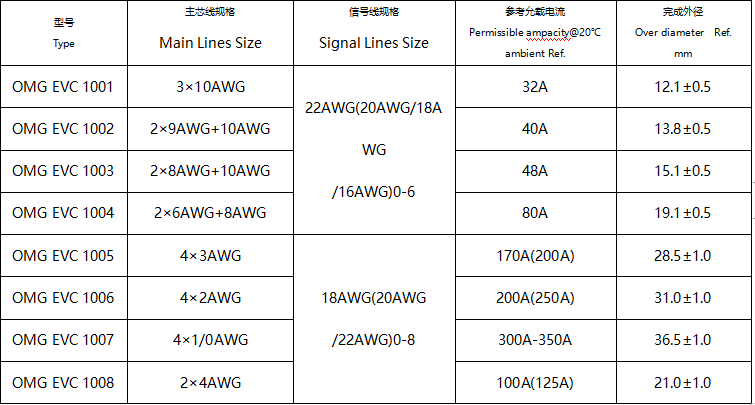

UL EV charging cable (Suitable for NACS、CCS1)
Reference Standard：UL 2263
UL No.:E345899
Construction |
Features |
1.Conductor |
Rated temperature：-50℃～105℃ |
Material: Bare Copper |
Rated Voltage：1000V |
2.Insulation |
Conductor Resistance（at 20°C）：8AWG≤2.23Ω/km;10AWG≤3.51Ω/km;16AWG≤14.1Ω/km;Test method Comply with UL 2556 |
Material: TPE |
15°C Insulation Resistance：8AWG≥34Ω.m;10AWG≥34Ω.m;16AWG≥45Ω.m;Test method Comply with UL 2556 |
Color：Black，red，Green/Yellow or other |
Dielectric Voltage： 4.0kV AC/1min（8AWG）,3.0KV AC/1min（10AWG）, 2.0KV AC/1min（16AWG）. No Breakdown. Test method Comply with UL 2556 |
3.Filler |
Bending Radius Min：≥6OD. |
Material: PP hemp or cotton yarn |
Hot Shock：150℃/1h No cracks Test method Comply with UL 2556 |
4.Tape |
Flame Test：FT1.Test method Comply with UL 2556 |
Material:Non-woven fabrics |
Insulation tensile strength：Before Aging 5.5Mpa;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
5.Sheath |
Insulation Elongation：Before Aging200%;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
Material: TPE |
Jacket tensile strength：Before Aging 8.3Mpa;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
Color: Black or Orange |
Jacket Elongation：Before Aging200%;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
|
Cold Bending Test：-40°C/4H,NO Cracking.Test method Comply with UL 2556 |
|
Hot Shock Test：150°C/1H,NO Cracking.Test method Comply with UL 2556 |
